Automotive & Signal Goniometer

• ECE, SAE, JIS, ADR, IS, KS 규격의 Automotive Lamp
• 도로교통 신호등
• Railway Lanterns
• IALA( 국제항로표지협회 ) 규격에 의한 항로표지등
• ICAO Annex 14 규격에 의한 Airport Runaway Signalling Lamps
• Photometric Type A
• Horizontal Axis : ± 360°
• Vertical Axix : ± 25°,± 30°, ± 90°(optional)
• Angular Accuracy : ± 0.1°,± 0.01°, ± 0.001°(optional)



• Automotive Head Lamp Test Result Exsample

3D Candela Diagram	Grayscale Diagram	3D Candela Diagram	Grayscale Diagram
Iso-Lux Birdseye View		Iso-Lux Driver's View

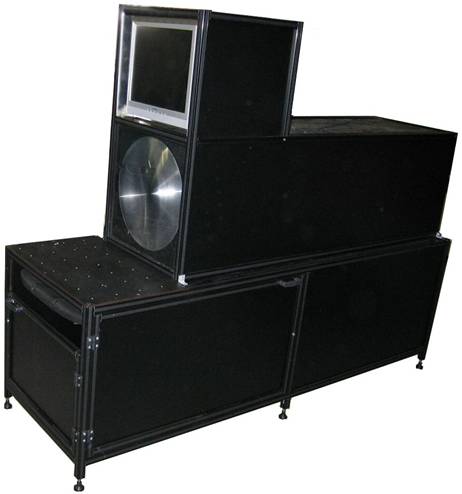

Imaging CCD Photometer

• In-Line measurement system for Headlamp
• V(l) 매칭된.CCD Camera를 사용한 Headlamp beam의 광도 분포의 간접측정
• Beam Image를 PC 화면에 표시
• Passing Beam: Beam Cut-off 자동 Detect
• Driving Beam : Emax, H-V value 표시
• Real time Display
• Batch Test
• FMVSS, ECE, SAE, DOT 표준에 의한 측정
